Performance data sourced from the 70°F ambient curve on the product spec sheet. Dashed segments are linear estimates beyond the published datapoints. Contact our engineering team for performance at your exact operating conditions.

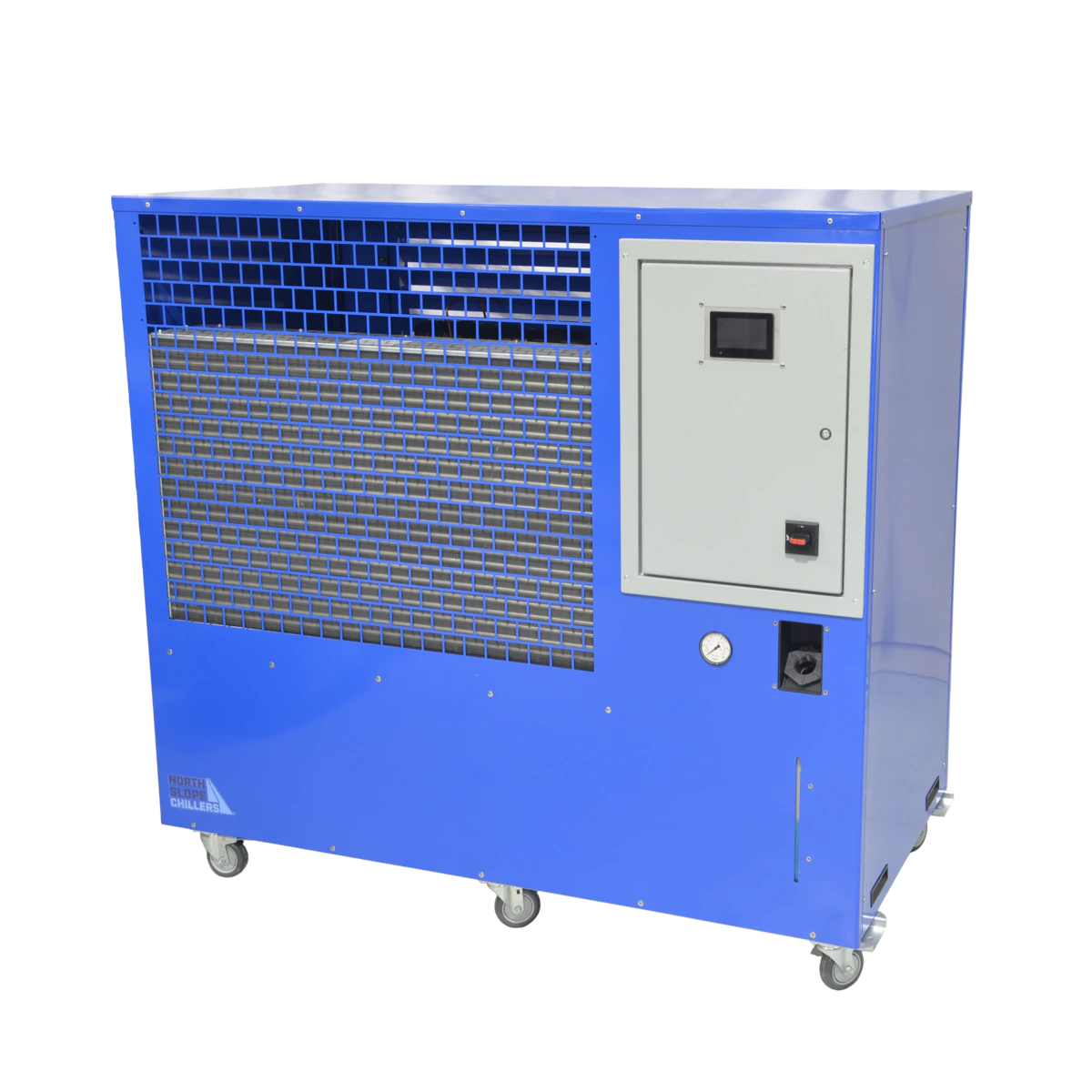

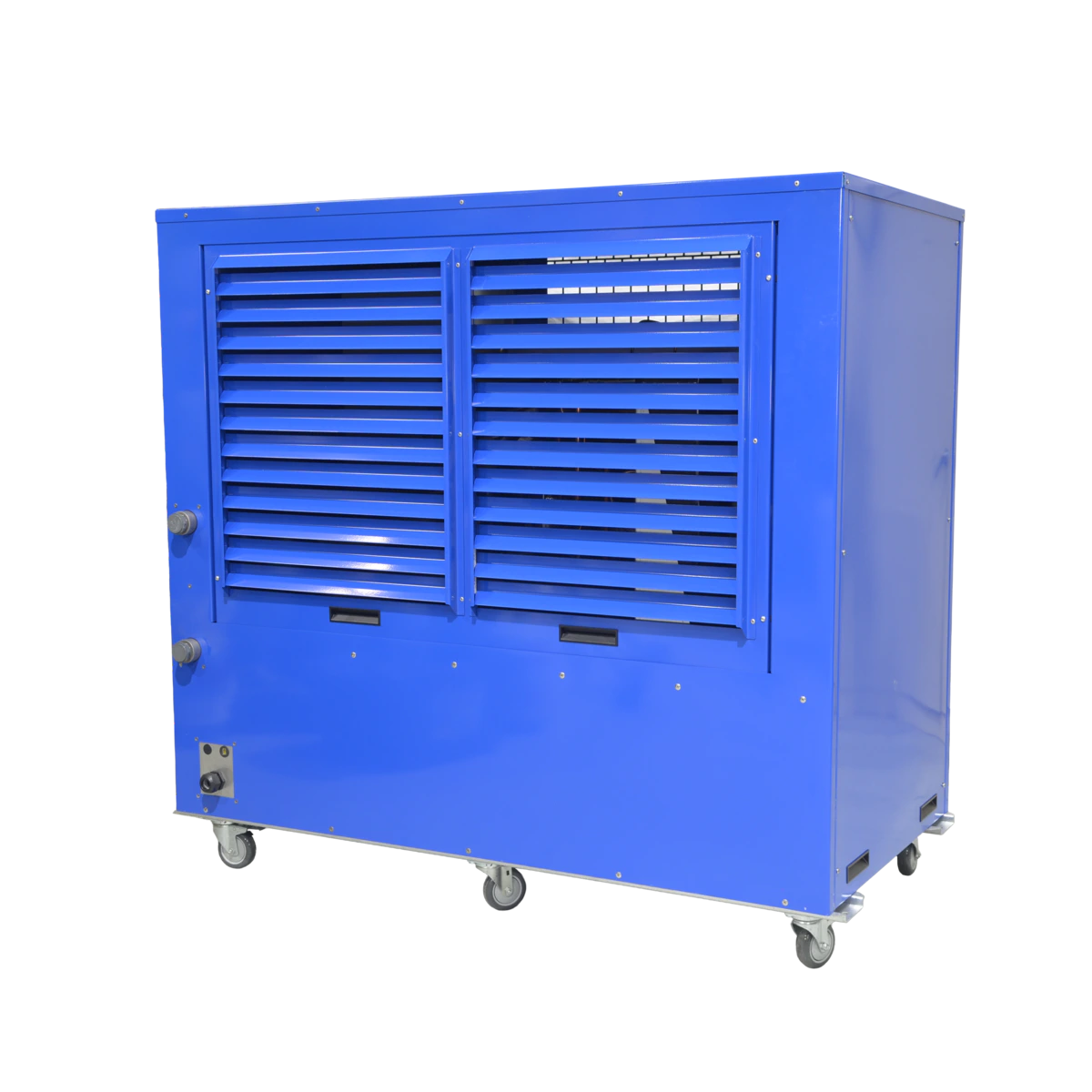

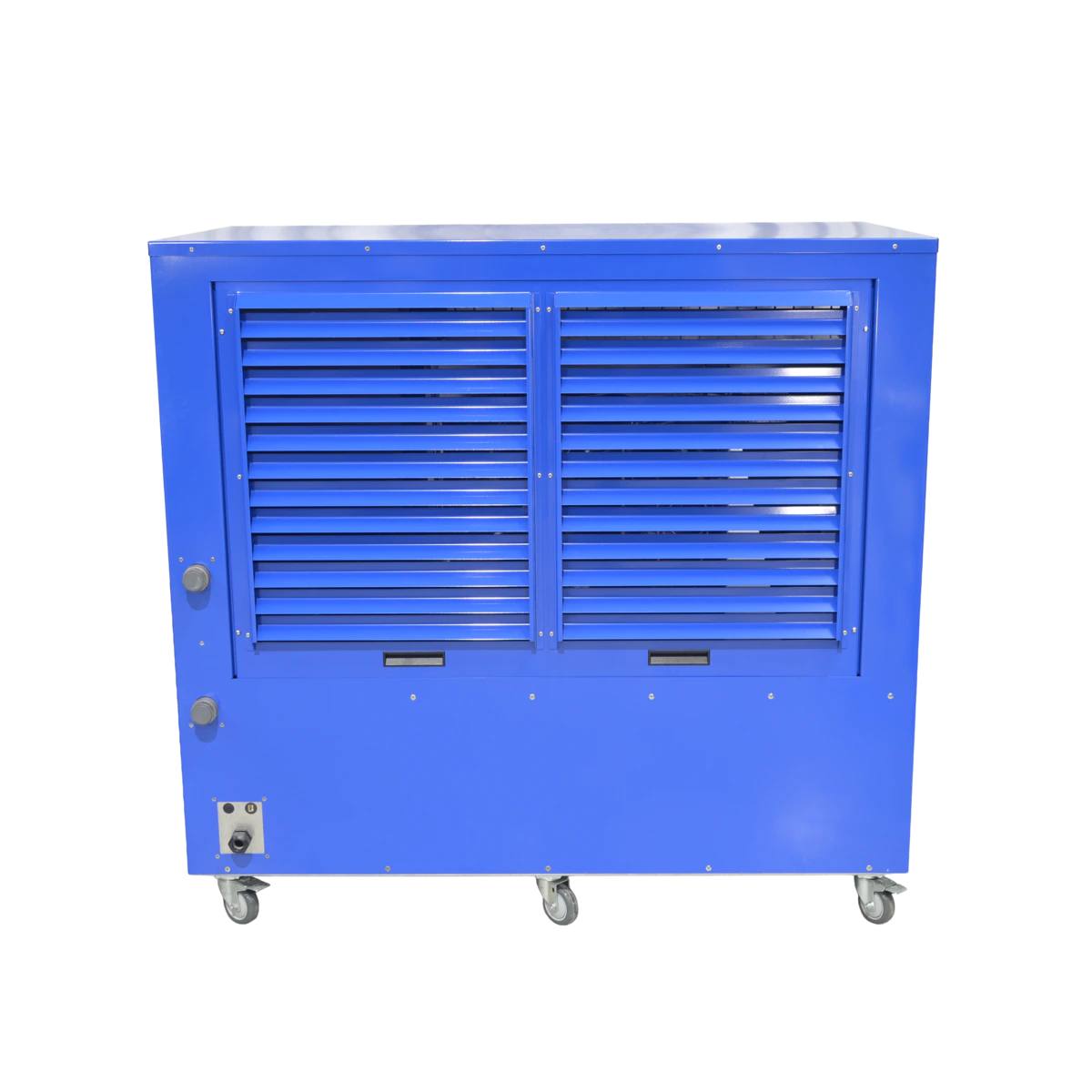

K2L SeriesDeep Freeze 5 Ton Chiller
Model: K2L05-LT-240/3
Robust, air cooled stand-alone industrial chiller designed for indoor operation and low temps. Capacity is 30,700 BTU's/hr at rated conditions (60,000 BTU's/hr nominal). Set up for ambient temperatures 35°F to 100°F. Heavy-duty construction, built in the United States with the fastest lead times in the process chiller manufacturing industry.
Voltage / Phase
FLA: 25.6 A|Recommended breaker: 35 A
Capacity
5 Ton
Temp Range
-20°F to 70°F
BTU
30,700 BTU/hr @ 27.5°F / 70°F
Voltage
208-240V / 3Φ
Key Features
Specifications
Pricing for the Deep Freeze 5 Ton Chiller
Pricing for this unit depends on two things: the tonnage (which you've already selected at 5 Ton) and the voltage configuration you need.
Three-phase 480V is typically the most cost-effective option for facilities that have it available — it requires smaller compressor electrical components, contactors, and wiring. Single-phase 208–240V costs more for the same cooling capacity because the compressor draws higher amperage and needs heavier-duty electrical components.
Ordering Guide
All voltage variants share the same 30,700 BTU/hr @ 27.5°F / 70°F cooling capacity and -20°F to 70°F fluid range. Choose the configuration that matches your facility's available power.
| Part Number | Voltage | Phase | FLA | Breaker | Stock |
|---|---|---|---|---|---|
| K2L05-LT-240/1 | 208-240V | 1Φ | 36.0 A | 56 A | — |
| K2L05-LT-240/3 | 208-240V | 3Φ | 25.6 A | 35 A | — |
| K2L05-LT-480/3 | 480V | 3Φ | 14.0 A | 16.6 A | — |
Need Different Specs?
These are our in-stock units — but we design and build custom chillers every day. Different capacity, temperature range, voltage, refrigerant, or footprint? Our engineering team can make it happen.
Don't Forget the Glycol
All North Slope chillers require propylene glycol to operate. If you don't already have glycol on hand, we carry a 50/50 premixed solution that's ready to pour — no mixing required.
Common Applications
What Customers Say About This Product
"Working flawlessly... As a matter of fact, the customer has requested 3 additional on the next project."
Program Manager, Leidos
