Freeze Industrial Portable Chillers

Specifications

Category Freeze Deep Freeze
Model Number NSC1000-230/1 NSC1000-460/3 NSC1000-LT-230/1 NSC1000-LT-460/3
Voltage 230/1/60Hz 460/3/60Hz 230/1/60Hz 460/3/60Hz
Ambient Temp 35°F - 100°F
Weight Approx 250 lbs

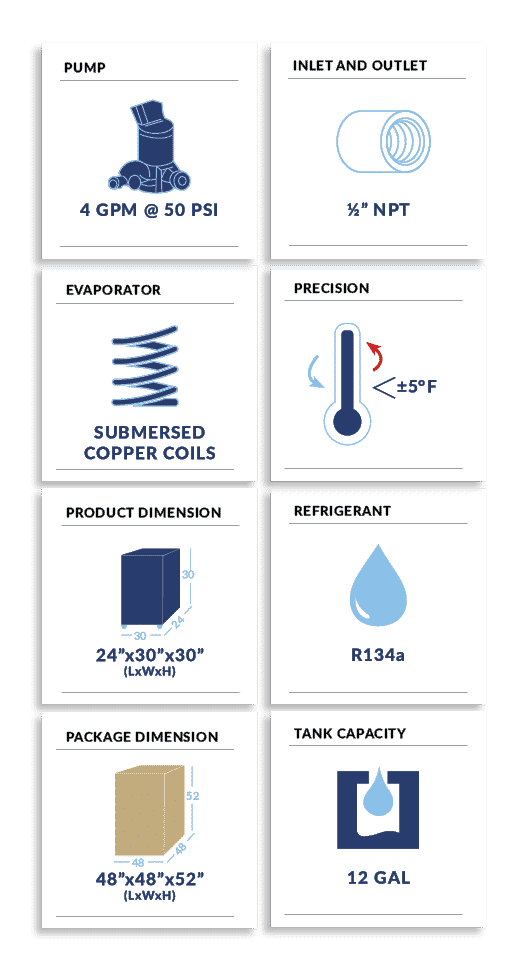

Pump 4 GPM @ 50 PSI
Inlet/Outlet 1/2" NPT
Amps 14A 7A 14A 7A
Dimensions 24"Lx30"Wx30"H
Capacity (BTU/hr) * 12,000 BTU/hr
Fluid Temperature Range (°F) 42°F - 80°F 10°F - 60°F
Refrigerant r134a
Evaporator Submersed Copper Coil
Reservoir Stainless Steel
Reservoir Capacity 12 Gallon
Fluid Water or Water/Glycol Water/Glycol Only
Image Image
Product Type Model Number Fluid Temp Range (°F) Cooling Capacity (BTU/hr)
FROST Download the Spec Sheet NSC0250-FROST 45°F - 85°F
3,000
NSC1000-FROST 45°F - 85°F
12,000
FREEZE Download the Spec Sheet
NSC0500 42°F - 80°F
6,000
NSC1000 42°F - 80°F
12,000
NSC2000 42°F - 80°F
24,000
NSC5000 42°F - 80°F
61,000
NSC10000 42°F - 80°F
132,000
NSC15000 42°F - 80°F
192,000
DEEP FREEZE Download the Spec Sheet
NSC1000-LT 10°F - 60°F
12,000
NSC2000-LT 10°F - 60°F
24,000
NSC5000-LT 10°F - 60°F
61,000
NSC10000-LT 10°F - 60°F
132,000
NSC15000-LT 10°F - 60°F
192,000
*The capacity rating is when the chiller is operating in 90F ambient conditions with a fluid temp of 55F. Capacity will decrease as ambient goes above 90F and/or fluid temp goes below 55F.
