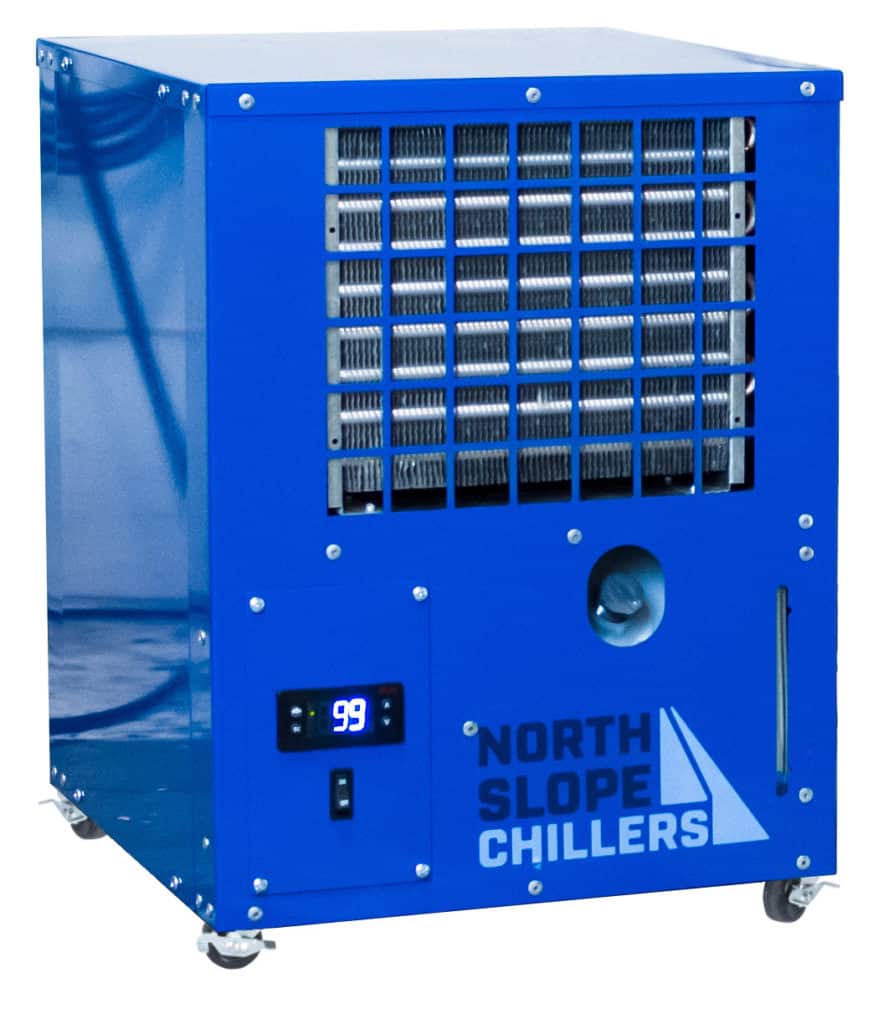

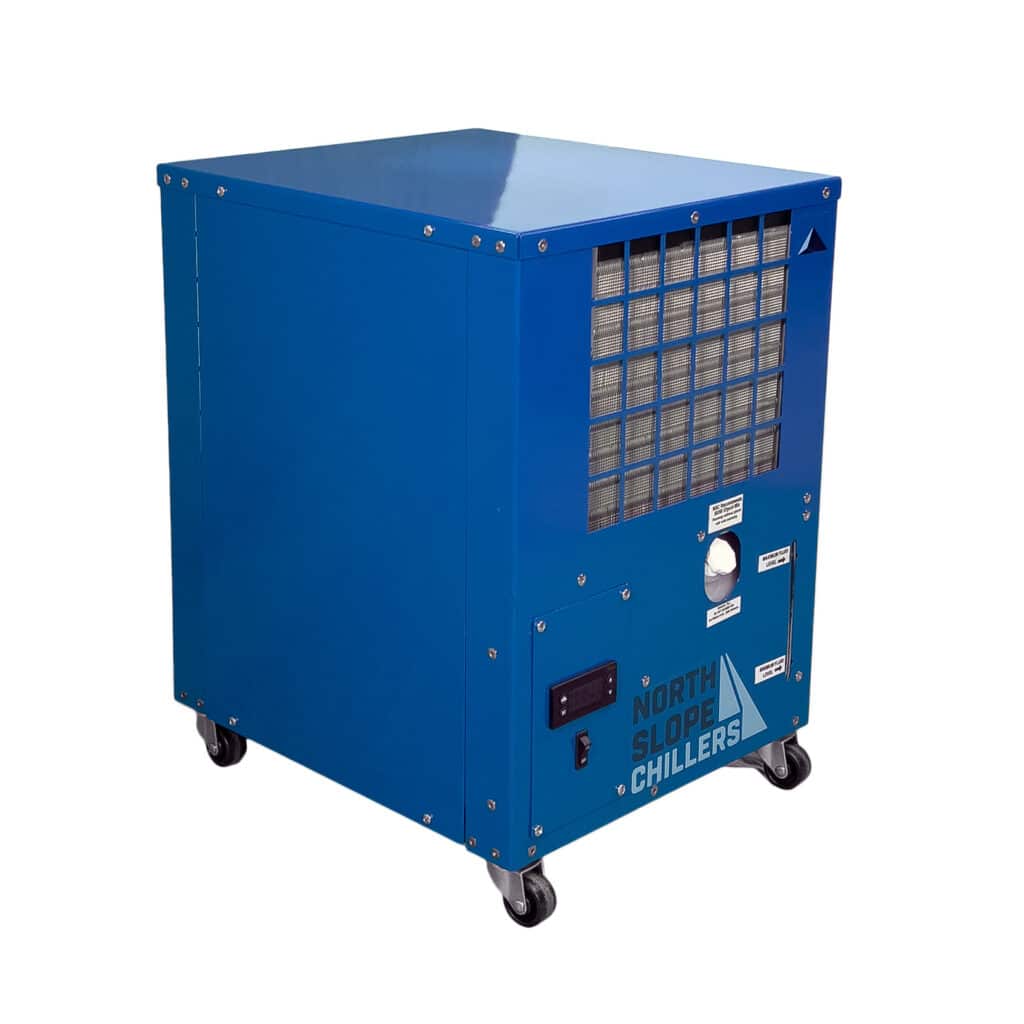

1/3 Ton (Horsepower) Freeze Chiller

Description

Our 1/3 ton (horsepower) industrial portable chiller system is a fantastic entry-level unit if you are ready to test the waters with chilling, or for smaller capacity cooling applications. Freeze pumps at various rates: 1 GPM at 15 PSI, 4 GPM at 10 PSI, 6 GPM at 7 PSI. This chiller’s fluid temperature range is 15°F – 65°F, and allowing for a 10°F differential, it will cool contents down to 25°F with ease. If you are looking for a small chiller with the advantage of being portable and economical, Freeze is your go-to portable chiller unit.

FEATURES

  • Temperature Range: 15°F-65°F
  • Entry Level Chilling – Closed Loop, Air Cooled Chiller System
  • Industrial Pump
  • Ideal for Single Container Chilling
  • Easily Portable Chiller
  • Brazed Plate Heat Exchanger
    2.5 Gallon Reservoir
  • Corrosion Resistant Poly Reservoir
gET A qUOTE

WHAT WE LIKE ABOUT FREEZE

Fluid temperature range: 15° F to 65° F (-9.4° C to 18.3° C)

Entry Level Chilling

Industrial Pump

Ideal for Single Container Chiller

Portable for Easy Mobility

Brazed Plate Heat Exchanger

2.5 Gallon Capacity Poly Tank

Corrosion-Resistant Reservoir

TECHNICAL SPECS

Model No.Fluid Temp Range (F)Ambient Temp RangeRefrigerantInlet/OutletPump TypePump PowerPump PressureReservoir CapcityCooling Capacity @ 90° Ambient (BTU/hr)DimensionsMax Amps (FLA)Recommended Breaker/Service (MCA)Available VoltagesShipping Weight
NSC033015°F – 65°F35°F – 100°Fr134a5/8″ BarbedContinous Duty60 Watt Centrifugal Pump0 GPM @ 17 PSI
3.3 GPM @ 13 PSI
6.6 GPM @ 5 PSI		2.5 Gallon Poly Tank25°F (-3.9°C) – 500 BTU/hr (150 Watts)

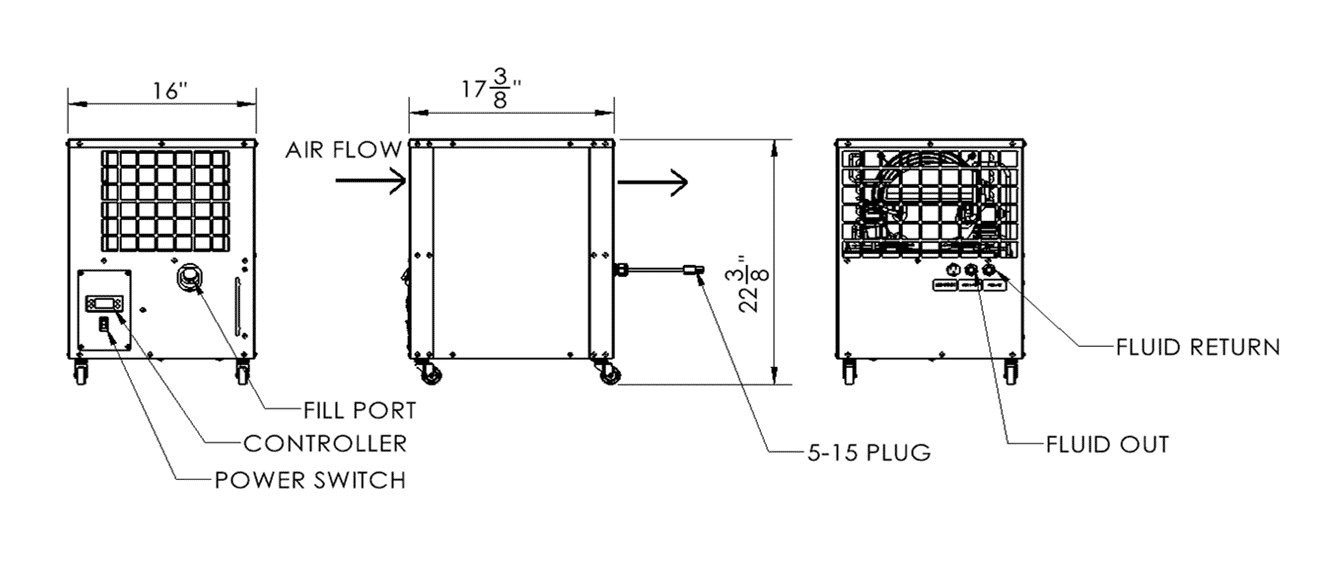

45°F (7.2°C) – 2,300 BTU/hr (670 Watts)		18-5/8″ L x 16″ W x 19″ H9.4 A @ 120/1/6015 Amp120V AC/ 1 Ph / 60 Hz112 lbs
