Frost Portable Chillers

Specifications

Category Frost
Model Number NSC0250-FROST NSC1000-FROST
Voltage 110/1/60Hz 230/1/60Hz
Ambient Temp 35°F - 100°F
Weight Approx 64 lbs Approx 174 lbs
Pump 3.5 GPM Max
Inlet/Outlet 3/4" Barbed 1/2" NPT
Amps 6.5 8
Dimensions 22"Lx11"Wx21.5"H 26"Lx18.5"Wx35"H
Capacity (BTU/hr) * 3,000 BTU/hr 12,000 BTU/hr
Fluid Temperature Range (°F) 42°F - 80°F
Refrigerant r410a
Evaporator Submersed Copper Coil
Reservoir Plastic
Reservoir Capacity 1.5 Gallon 4 Gallon
Fluid Water or Water/Glycol
Image Image
Product Type Model Number Fluid Temp Range (°F) Cooling Capacity (BTU/hr)
FROST Download the Spec Sheet NSC0250-FROST 45°F - 85°F
3,000
NSC1000-FROST 45°F - 85°F
12,000
FREEZE Download the Spec Sheet
NSC0500 42°F - 80°F
6,000
NSC1000 42°F - 80°F
12,000
NSC2000 42°F - 80°F
24,000
NSC5000 42°F - 80°F
61,000
NSC10000 42°F - 80°F
132,000
NSC15000 42°F - 80°F
192,000
DEEP FREEZE Download the Spec Sheet
NSC1000-LT 10°F - 60°F
12,000
NSC2000-LT 10°F - 60°F
24,000
NSC5000-LT 10°F - 60°F
61,000
NSC10000-LT 10°F - 60°F
132,000
NSC15000-LT 10°F - 60°F
192,000

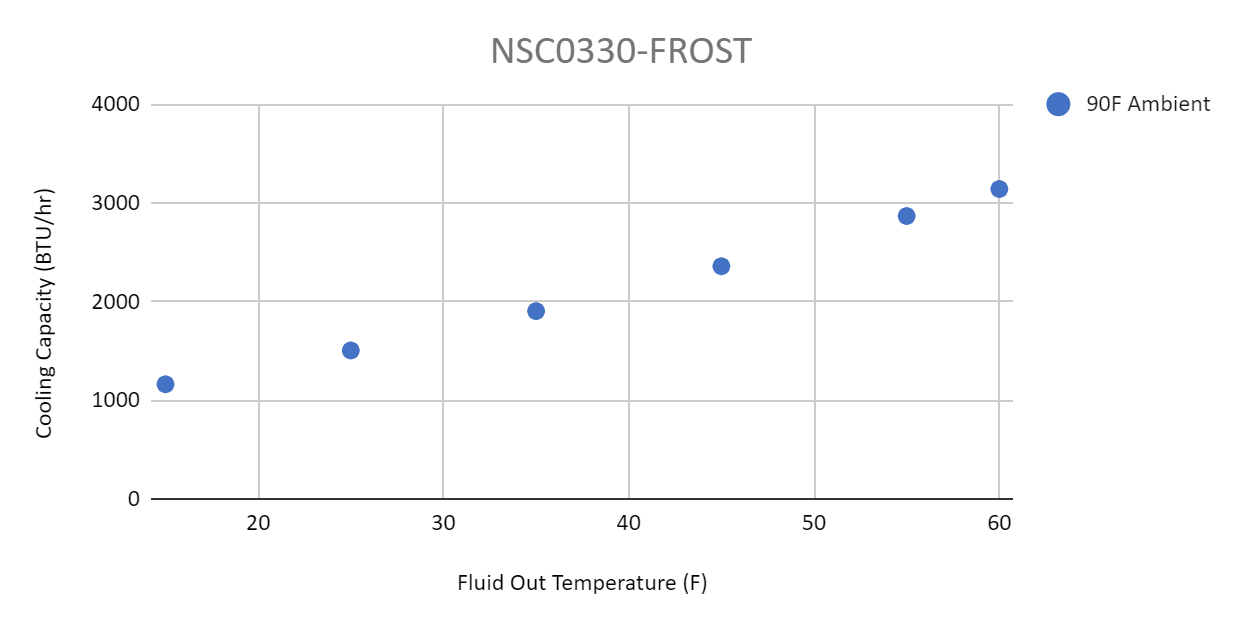

*The capacity rating is when the chiller is operating in 90F ambient conditions with a fluid temp of 55F. Capacity will decrease as ambient goes above 90F and/or fluid temp goes below 55F.
